PCI System
BKT's MiniCell - standard accessory for the PCI System was designed for simple snap together operation. The cell consists of 3 components, a screw down Working Electrode (W.E) holder over which is located an E- nickel plated Counter Electrode (C.E) ring. The third component a 90 Deg angled Reference Electrode is connected to the main assembly through a split bush bracket.

The MiniCell accepts BKT standard cylindrical metal specimens. Custom specimens can be easily machined for non standard metal types.

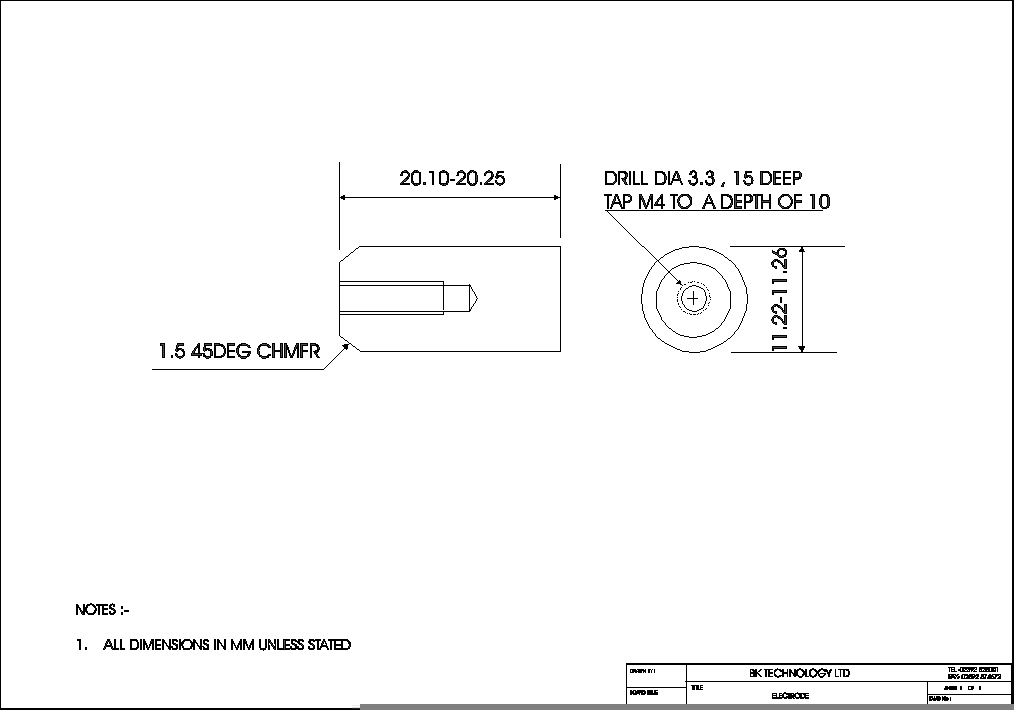

BKT's MiniCell - standard metal W.E specimen. Specimens can be machined from bar spec materials to the Drawing dimensions else special specimens can be manufactured to customers specific metal requirements.

DIGIGALV

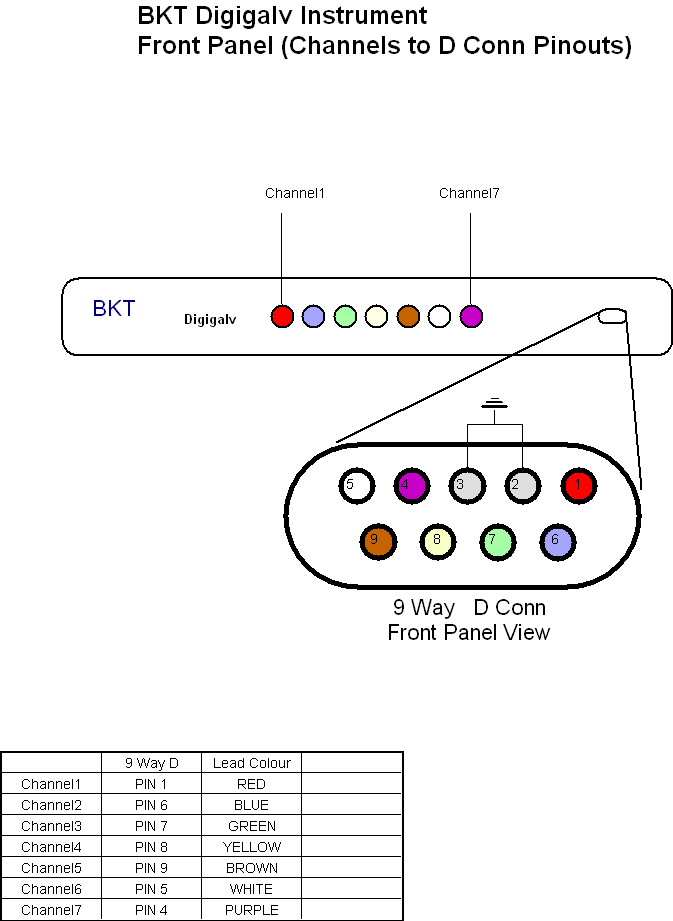

Instrument/Probe 9 Way D Pinouts DIGIGALV Test Probes can be manufactured to emulate standard IP329 and ASTM 1384 multi-metal fluid corrosion tests.

Probe Kits are available for assembling of one off test probe applications

BKT can offer specialist O/S materials and electrode machining services.
