* Take the guesswork out of fluid/metal compatibility

The PCI2002 system

Pci_Win Datasheet                                                 Version 1.6 June.00

OVERVIEW Select Language
Inhibitor  Assessment  The PCI2002 System has established itself as an invaluable front line tool for lubricant developers in the race to produce new ecologically efficient machining and engineering water based fluids.
Fluid Diagnostics B K Testing Technology enables the assessment of the fluid film forming abilities in varying degrees of water hardness / aggressiveness in a matter of minutes.  Thus allowing the lubricant developer to quickly identify active component concentrations, synergies, and gain knowledge of the surface chemistry behaviour of a fluid.
Technical Service
Solution Modelling

Methodology

·      Visualise film formation, and breakdown

·     Identify the mechanisms of inhibitor adsorption from adsorption potentials

·      Relate adsorption strength to MWT and  produce relational solution models



Sweep curve characteristics can be related to known solution chemistries
Robust Fluid Design

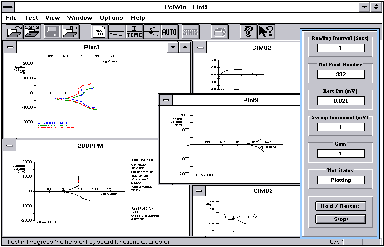

Pci_WIN Software

Win95 and WIN311 compatible , Pci_WIN incorporates three modes of fluid testing:-

· SWEEP

Determine conc of inhibitors required for trouble free performance in varying degrees of water hardness

· REST

Screen fluid for surface activity and show the presence of Active/Passive surface oxide layers

· CURRENT-TIME

Inhibitor persistence testing



For more information contact: Nick Ballinger MSc

B.K. Technology Ltd

Tel / Fax +44 (0)2392  862999  E-mail sales@bktechnology.net

   Download a printer friendly PDF datasheet
